Making and installing the barrel tenons:

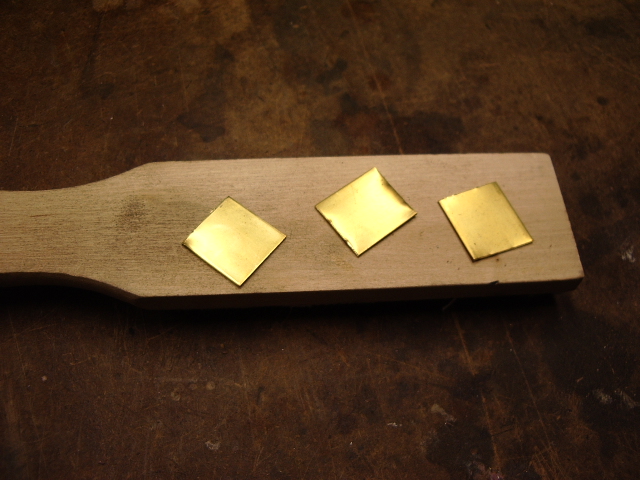

Made tenons out of 1/16" thick brass scraps I had in the shop.  Cut the strips 12/32" wide X 24/32".

2009-01-08 001.JPG (258502 bytes)

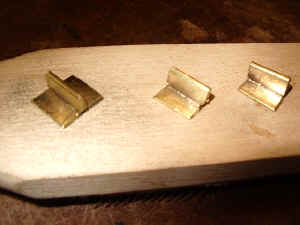

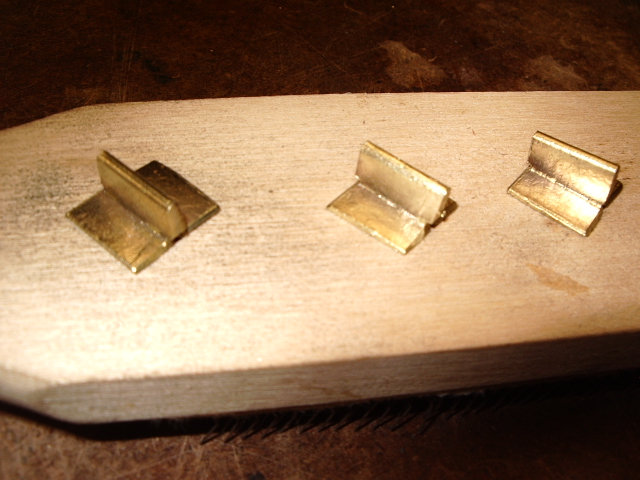

After annealing the brass, I folded them in half. I measured down 6/32" down from the folded end and made mark across the brass.  Inserted the folded end into the vise to the line. Then used a flat-bladed screwdriver to fold the halves apart and then hammered them down.  This gave me the basic shape of the tenon.  Then I pried open the tenons and applied solder and when the solder melted,2009-01-08 006.JPG (241845 bytes) I clamped the vise shut and squeezed them shut.  This process made some very strong tenons for the rifle.

Using my safe triangular file, I filed the bevels on the ends of the tenons. You can see the bevels on the far left tenon.

I decided to make four tenons for the length of the 42" barrel.

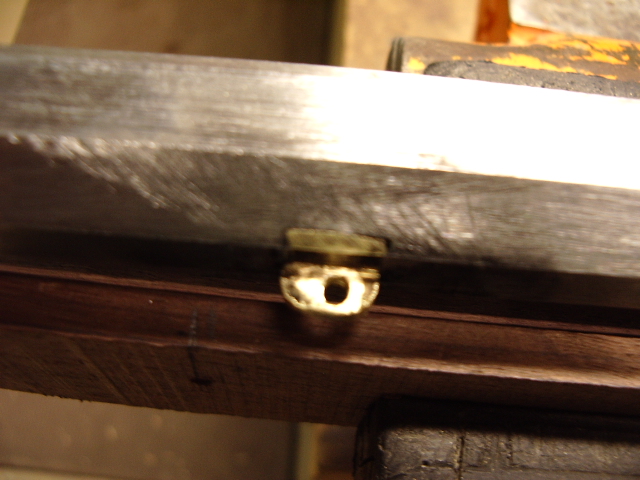

Here is a photo of the installed tenon on the barrel and the hole was drilled for the 3/32" pin used to hold the barrel to the stock.  Note, once the tenon is drilled, I round out the tenon so I do not catch the sharp edges on my fingers later when I clean the barrel after shooting. 2009-01-08 008.JPG (246815 bytes)

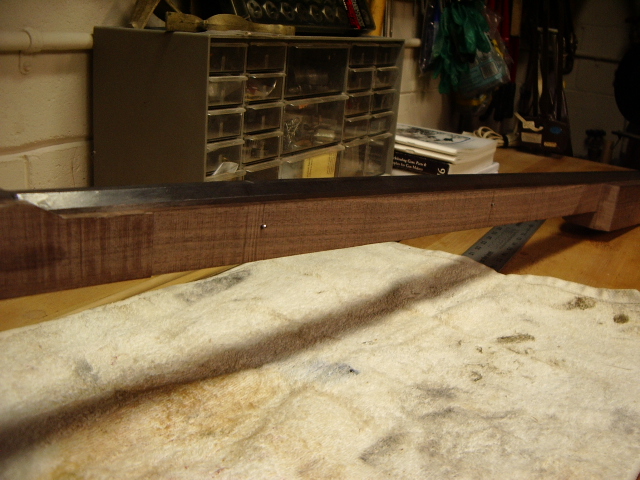

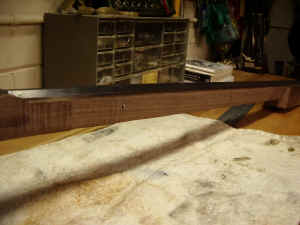

2009-01-08 009.JPG (234238 bytes)
