Installed the Toe Plate:

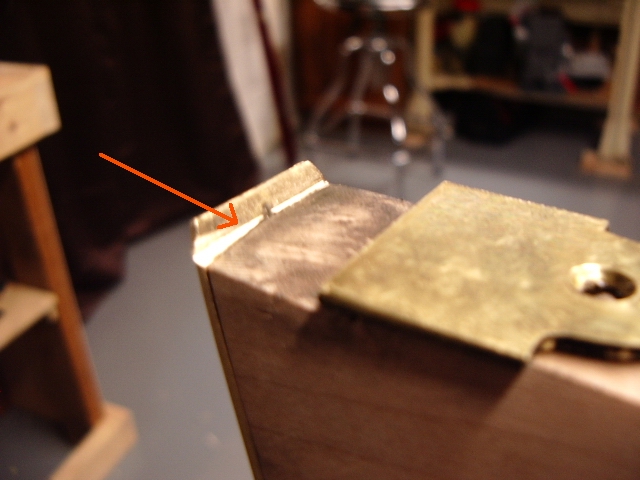

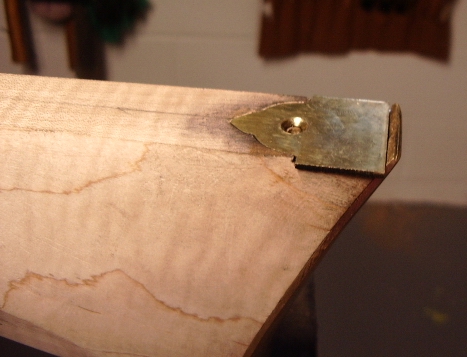

I cut out a piece of brass for the toe plate. This was brass the same thickness as exposed by the butt plate. Then I inlet it into the stock. Once this was done, I used a "safe" file to cut into the exposed edge of the butt plate so the toe plate fit into it.

2010-06-22 002.JPG (224246 bytes) 2010-06-22 001.JPG (150933 bytes)

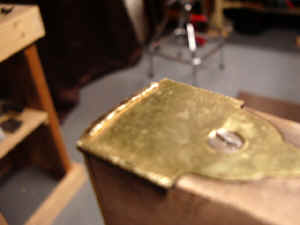

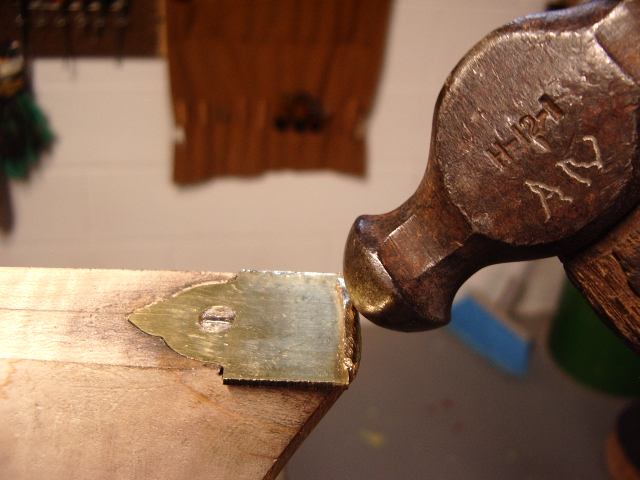

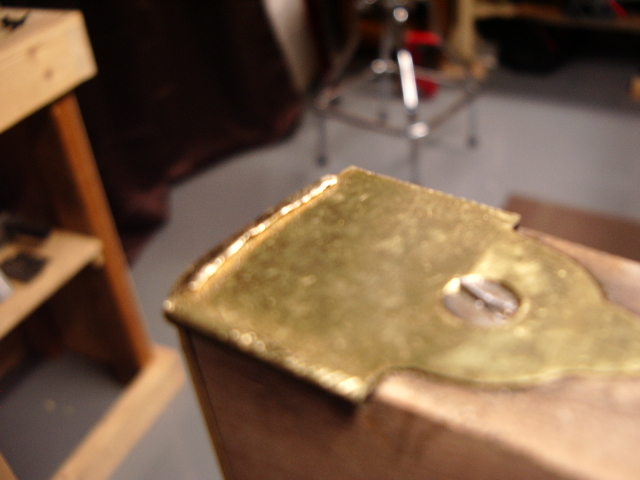

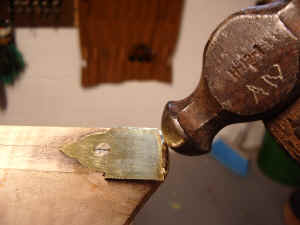

Then I filed the lower thickness of the butt plate down. This allowed me to peen the edge over on top of the toeplate. 2010-06-22 003.JPG (230763 bytes)Once this was done, then I filed the edge down and smoothed it out. 2010-06-22 005.JPG (276783 bytes)

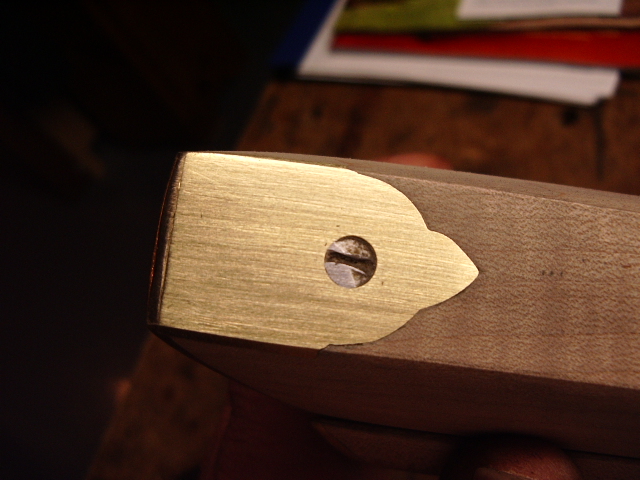

2010-06-28 004.JPG (250083 bytes)
