Sights were installed next:

The front sight was placed 3/8" back from the muzzle of the barrel. Lines were marked onto the barrel. Using a hacksaw, I cut down 1/16" into the barrel on the inside of the lines. Front Sight a.JPG (145213 bytes)

I drew lines horizontally between the cuts on either side of the barrel.  This gave me a depth gauge for the next cuts for proper depthFrnt sight cut.JPG (150869 bytes).  Saves me a lot of time so I don't have to keep stopping and measuring my depths.

Next I cut a series of cuts to these lines.

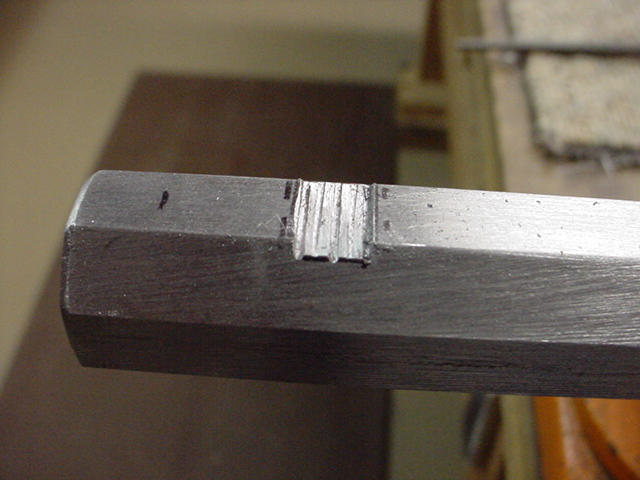

Using a square or triangle file, I file down the thin strips of metal till I meet the bottom of the cuts. Frnt sight filed.JPG (157617 bytes)

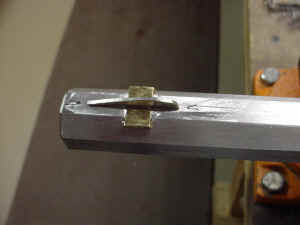

Now I flatten the bottom. Using the safe file, I file with the safe side down and the cutting surface facing the the edge of the slot and file into it. This cuts a dovetail into the side of my barrel.  Once this is done, I trial fit the sight in tFrt Sght Cntr.JPG (152709 bytes)he dovetails occasionally to test fit it.  When the sight starts to fit the dovetail, I stop filing on either end.  I find center on the barrel and mark it for the front and rear of the sight. Then I drive the sight into position using a brass rod and a hammer.

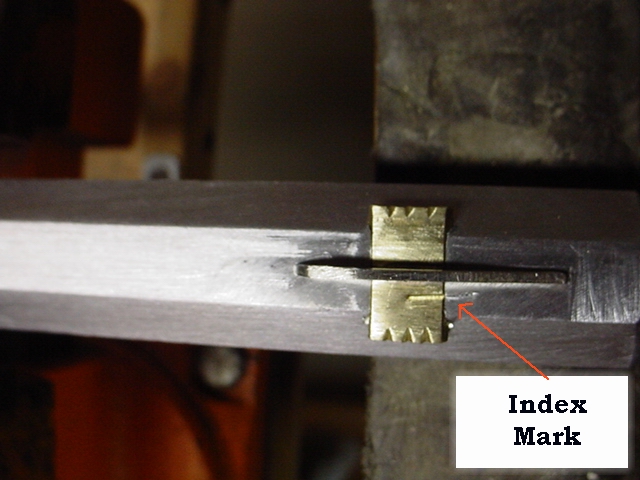

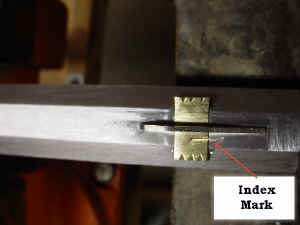

Once the sight is centered on the barrel and tight. I use a chisel and make an index mark so if the rifle needs to be properly sighted in, the owner can use these marks to see how Index Mrk.JPG (179320 bytes)much they have moved the sights in getting there rifle sighted in.

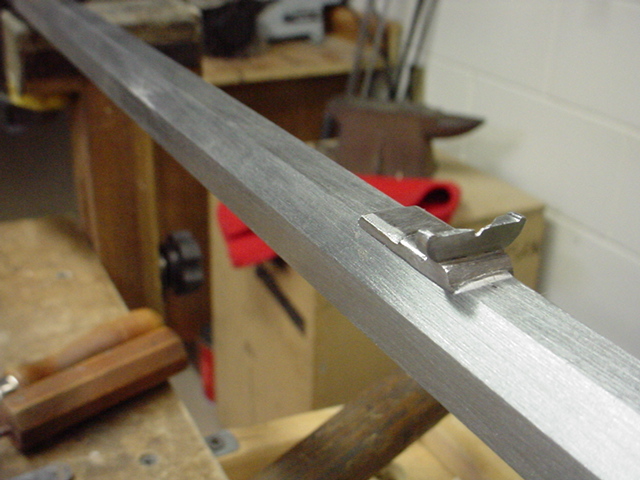

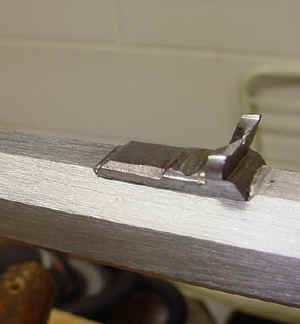

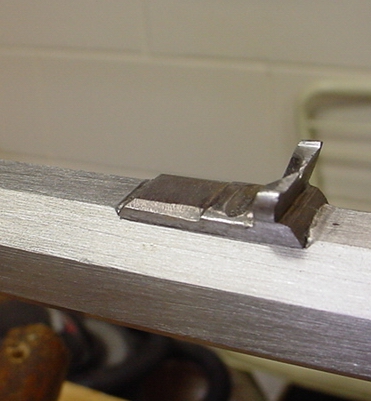

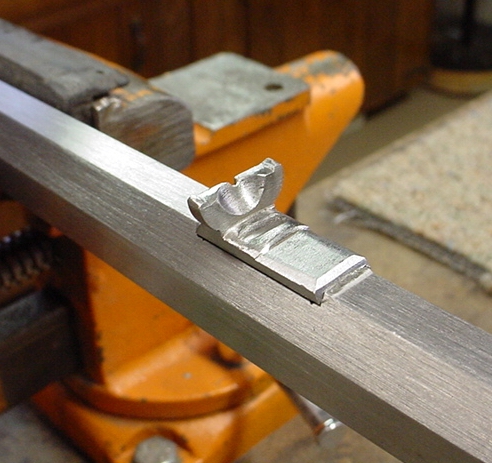

I placed the rear sight about 10" up the barrel from the breech.  Cut down 1/32" for the length of the sight. (Well a little shy, to allow for the dovetailing for the sight.)   DSC00103.JPG (148364 bytes)
