Muzzle Cap Installed:

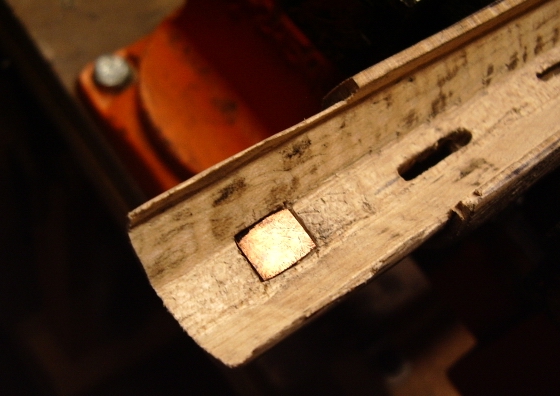

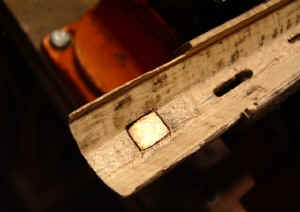

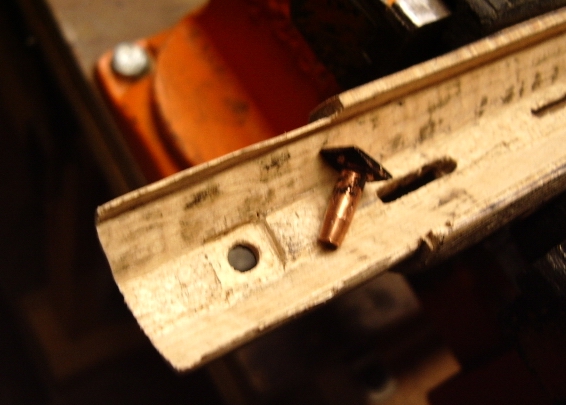

First I inlet the cap onto the end of the stock. Then I drilled a hole thru the cap and the stock. Took a copper rivet, squared the head and then inlet the rivet into the stock. 2006-12-21 001.JPG (185627 bytes)

  2006-12-21 003.JPG (181918 bytes)

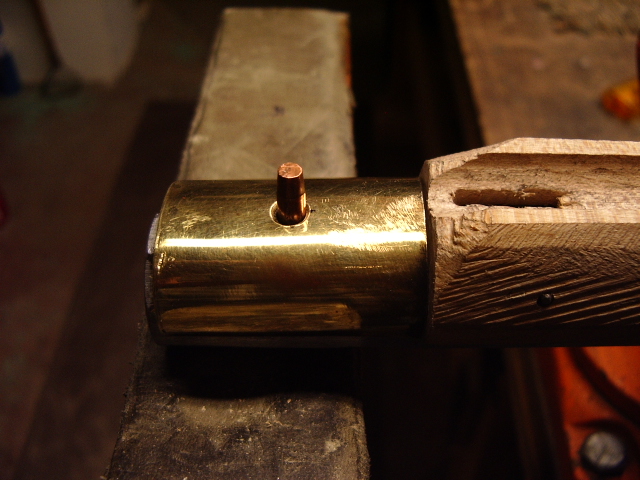

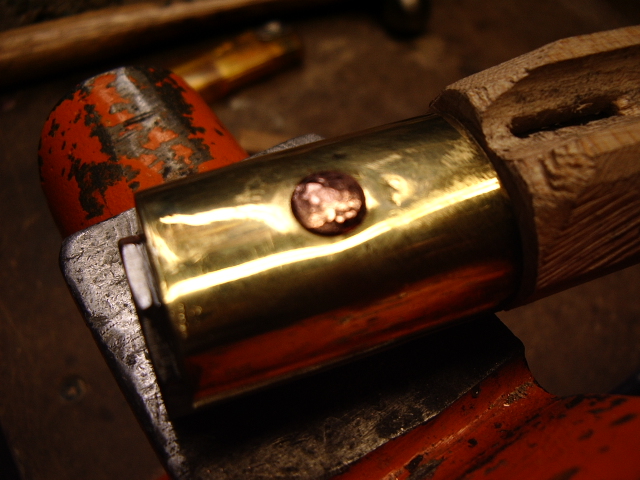

Placed the barrel back into the stock and peened the rivet. (Note, I countersunk the hole in the cap for the rivet to fill the hole.)

2006-12-21 006.JPG (241323 bytes) 2006-12-21 007.JPG (258033 bytes)

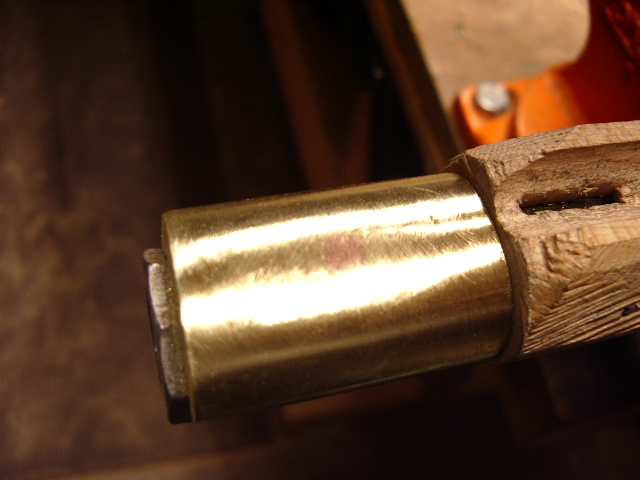

Now I filed the rivet flush.

2006-12-21 008.JPG (250005 bytes)   2006-12-21 011.JPG (158408 bytes)

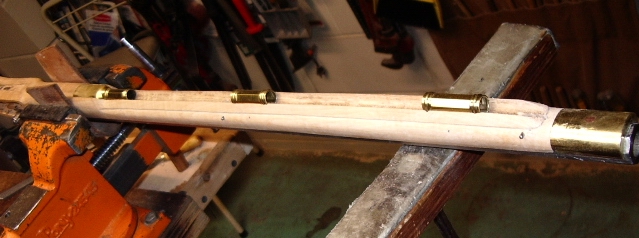

Now it appears the gun is taking shape.
