New Stock Laid Out & Cut To Shape:

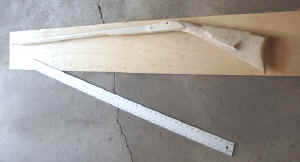

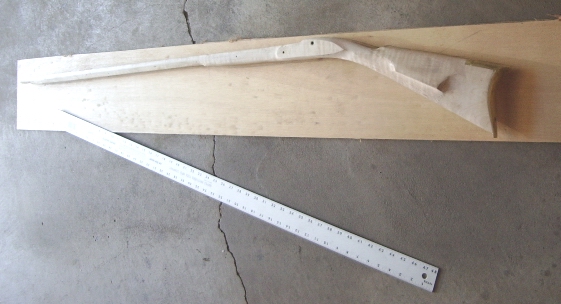

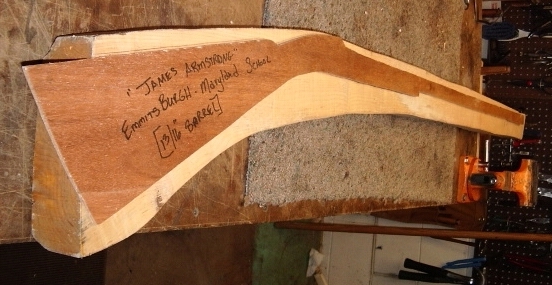

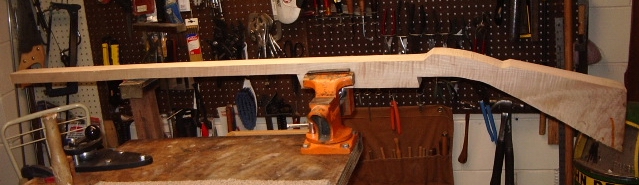

Made a pattern from the original stock. Laid the pattern onto the stock and cut it out.

2007-06-02 001.JPG (156332 bytes)









  2007-06-02 004.JPG (172243 bytes)

  2007-06-02 007.JPG (141436 bytes)



Cut Out The Barrel Channel:

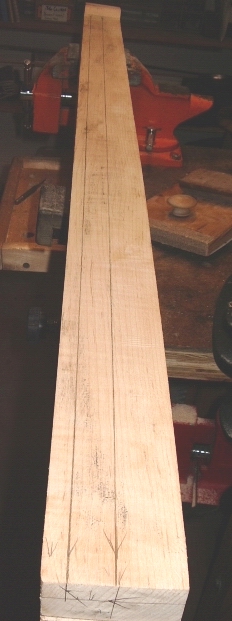

Then drew lines onto the stock,  cut out the barrel channel and inlet the barrel into the stock.

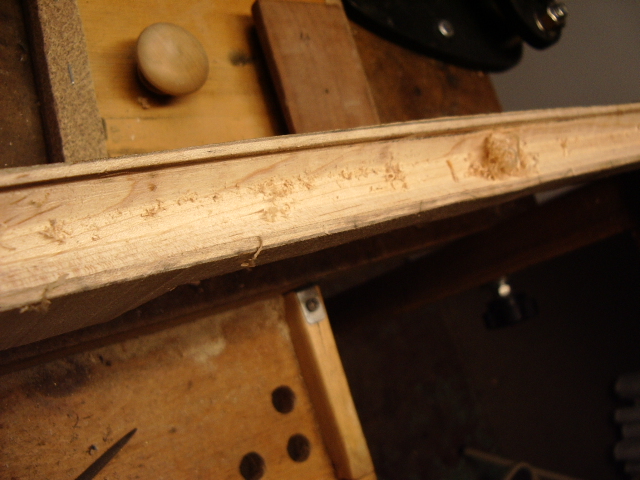

2007-06-07 006.JPG (257913 bytes)

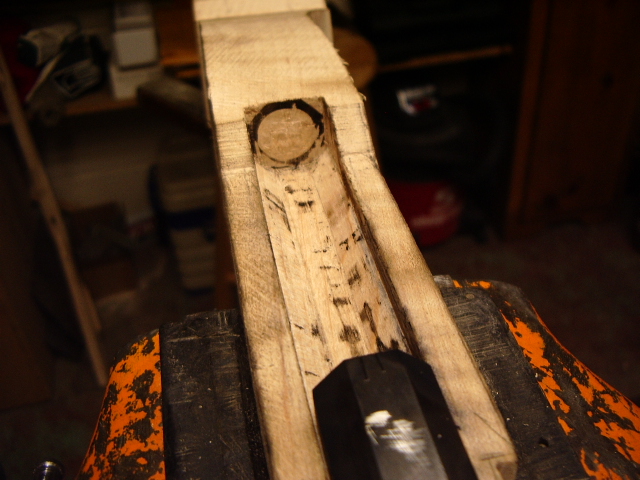

Then I seated the breech of the barrel square into the wrist area.

2007-06-07 009.JPG (241606 bytes)







Then I reshaped the tang and inlet the tang into the wrist of the stock. (Note this photo was taken later in the process)

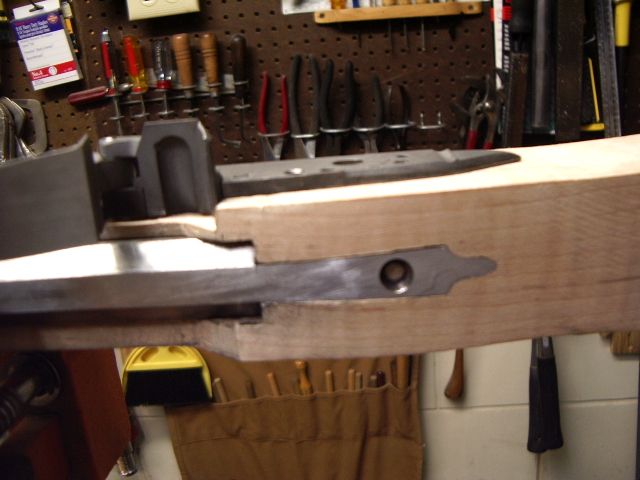

The Tang.JPG (238602 bytes)

Carved The Ramrod Channel:

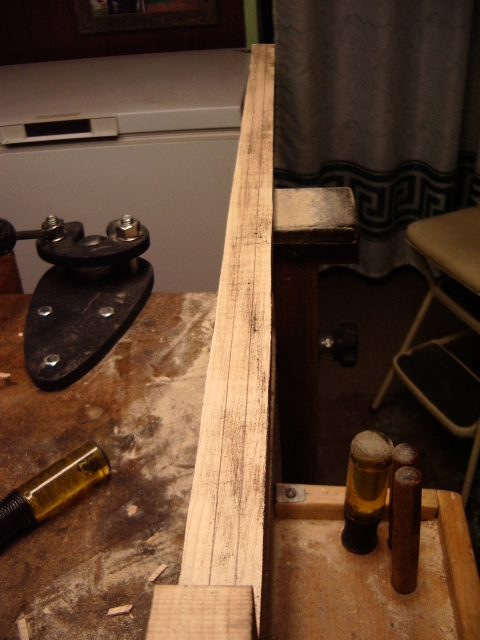

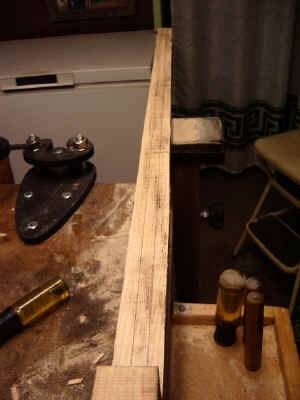

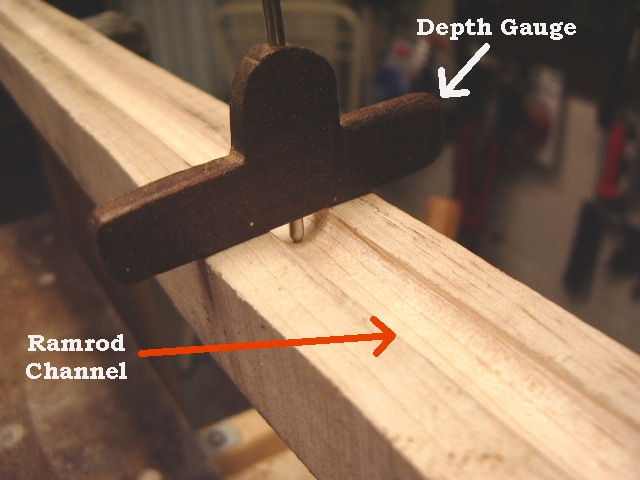

Next I flipped the stock over and drew out the lines for the ramrod groove. Carved it out and used a depth gauge to 1/2 depth of the ramrod's thickness. Once this was done, I then drilled out the ramrod hole into the forearm to the depth of the inside of the barrel with the breech plug in place. RmRd Chnl Drwn.JPG (256641 bytes)

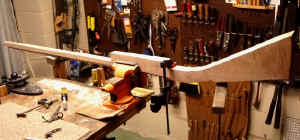

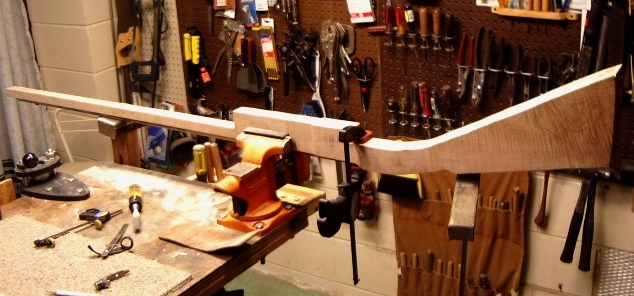

Stock in Vise.JPG (204997 bytes)

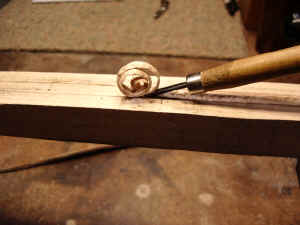

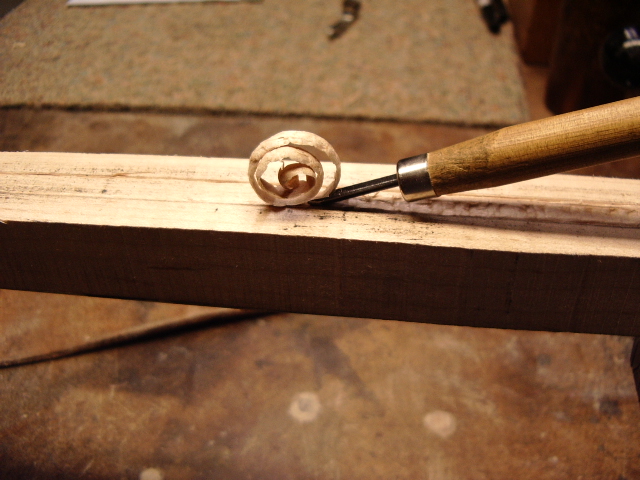

Gouge Chnl.JPG (242676 bytes)

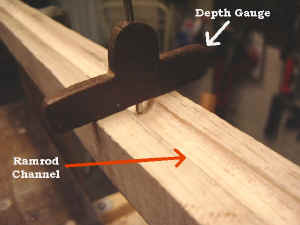

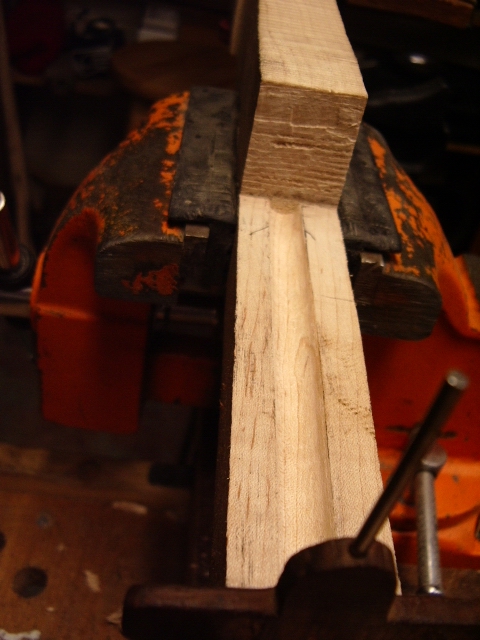

Chnl Depth.JPG (245660 bytes)Entry Hole Location.JPG (239079 bytes)





















Inlet the Lock:

First the lock was aligned with the front bolster aligned with the midway point on the side of the barrel and the tale was centered in the wrist area. The lock bolster was inletted so the plate laid flat against the stock.  The wood was removed and the lock inletted and the excess surrounding wood is removed.

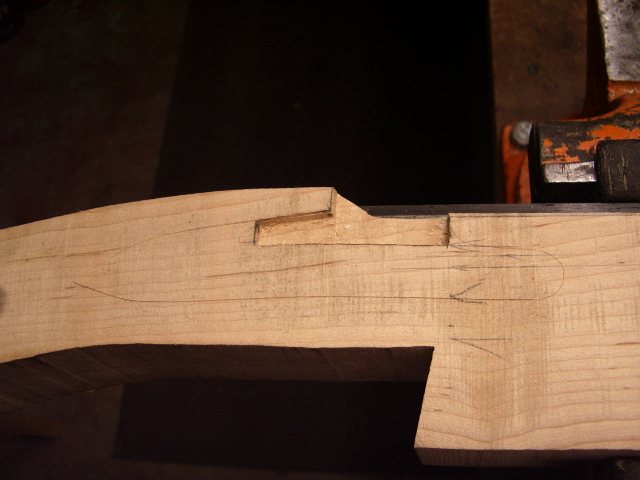

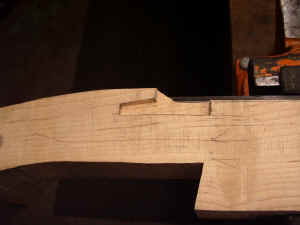

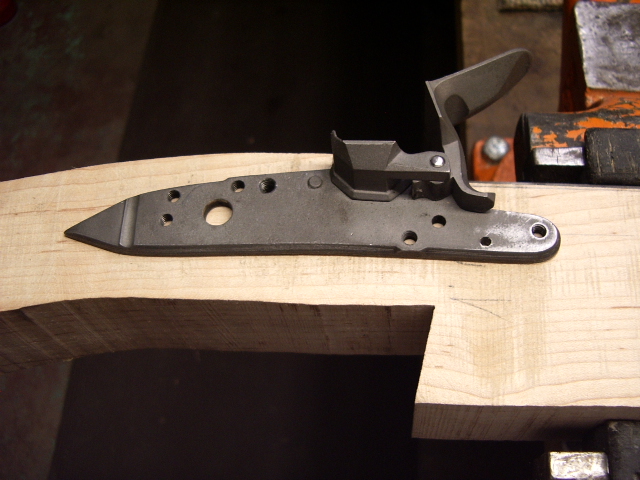

Lock Plate Positioned.JPG (239529 bytes)  Bolster Inletted.JPG (255321 bytes)

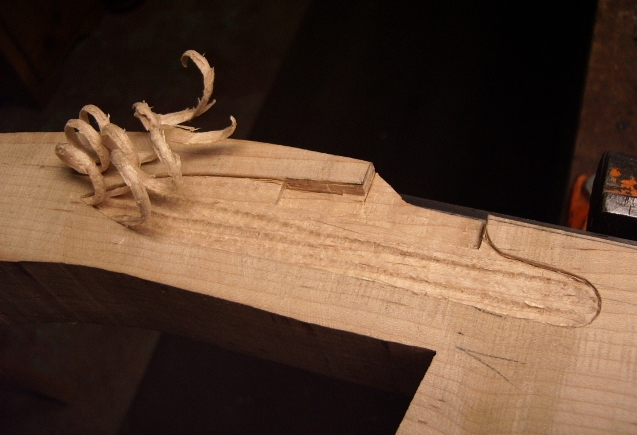

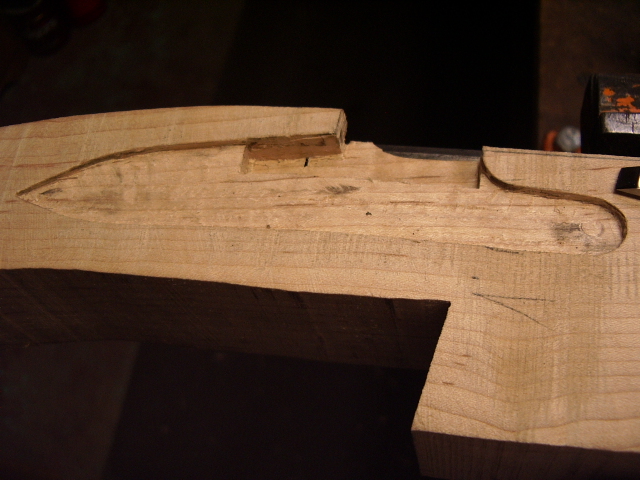

Gouging Wood.JPG (228813 bytes)  Lock Plate Recess.JPG (257124 bytes)

Note: I drilled out the lock bolt holes right after the lock panel was inletted and before I started inletting the internal parts of the lock. I used the holes predrilled in the lock as my pilot holes for these holes. Forward bolt is 8x32 and the rear bolt is 10x32.

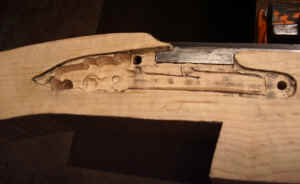

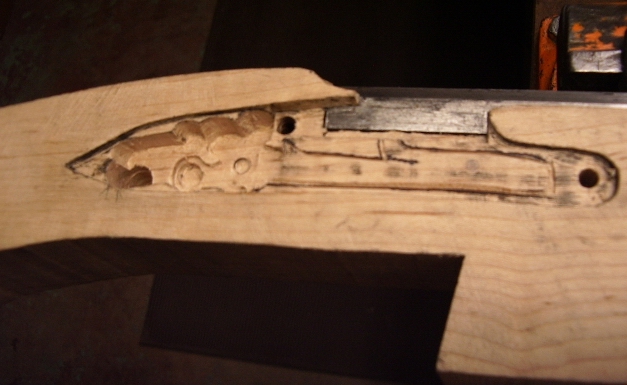

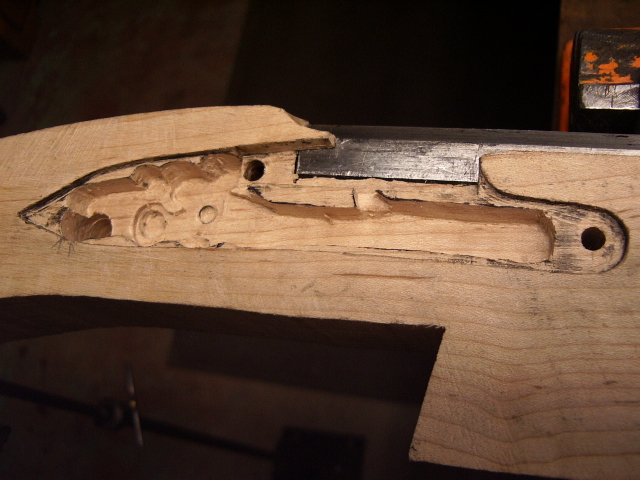

Lock inlet b4 spring.JPG (194065 bytes)  Whole Lock inletted.JPG (241606 bytes)

Lock in Operation Movie:

Lines have been drawn out on the stock and ready for more wood removal.
