Shaped the Lock Panel:

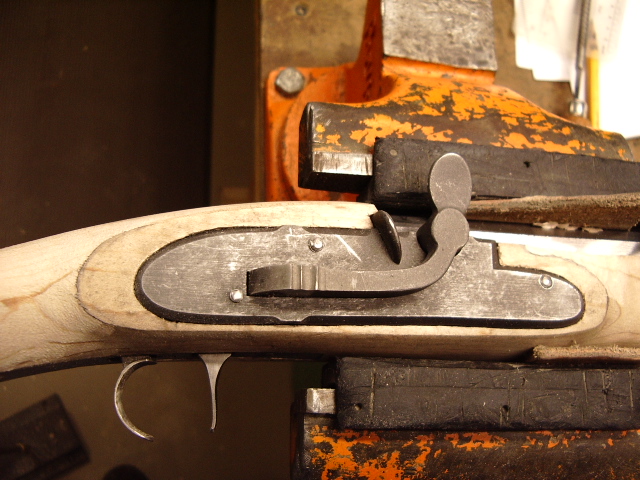

Copying the shape of the original, I made this panel to match the original. 20090313 002.jpg (223711 bytes)

20090313 001.jpg (218750 bytes)

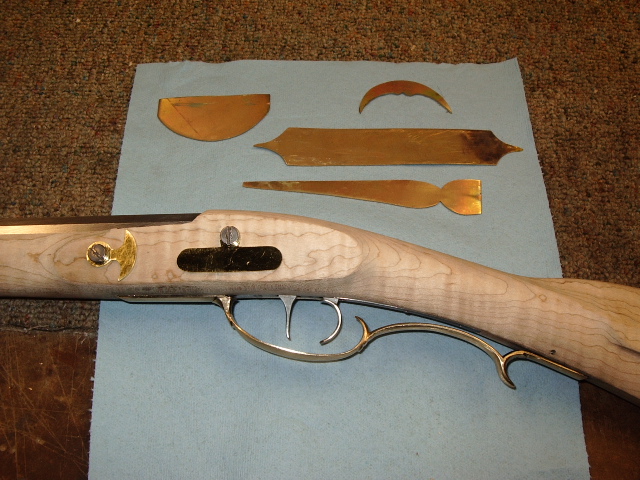

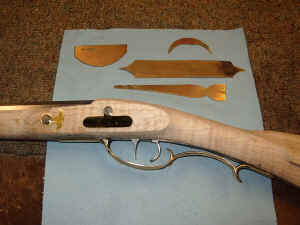

Then I made a paper tracing and transferred this pattern to the side plate side. Here is the panel with the two inlays in place prior to inletting into the stock. The large side plate inlay on the left covered the pin for the trigger guard. Also, you can see the other inlays cut out and ready to be inletted later.

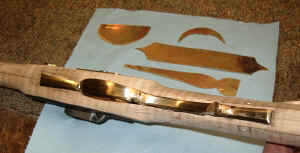

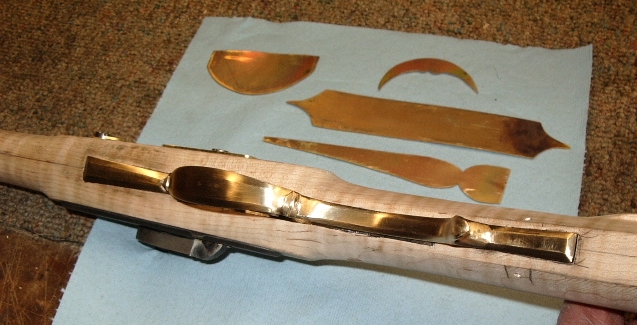

As you may have noticed, I had already inletted the trigger guard into the stock, too. 20090313 004.jpg (212133 bytes)

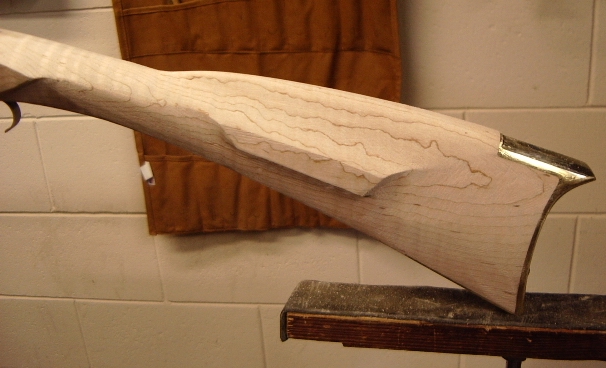

Now I am ready to start inletting the moon and the pick holder on to the buttstock.

2009-03-09 005.JPG (193501 bytes)
