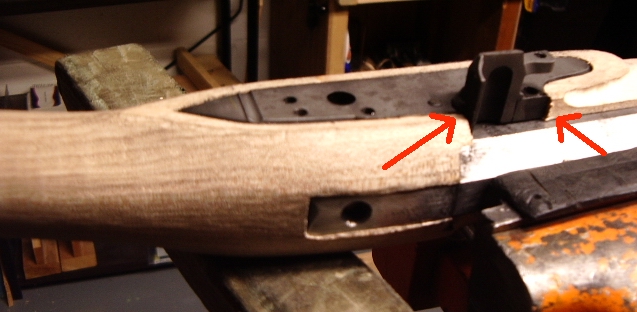

This is a Chamber's Siler lock.  To inlet the lock into the precarved stock, disassemble the lock down to the faceplate. Align the lock with the cut-out in the stock. Then using a pencil mark along the outside of the lock and remove the extra wood on either side of the frizzen pan area. This allows the lock to lay flat onto the stock itself.

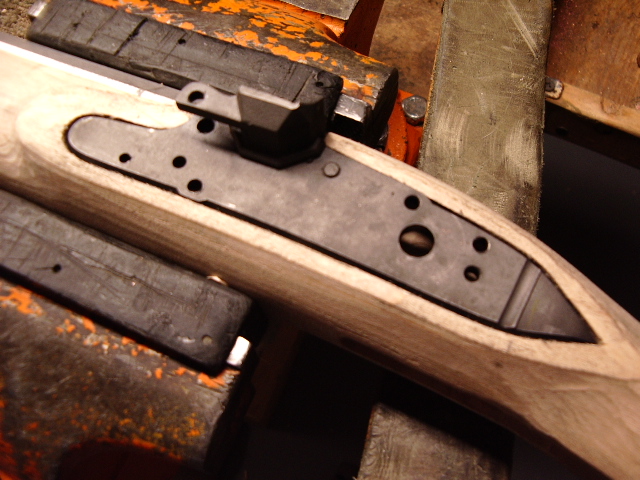

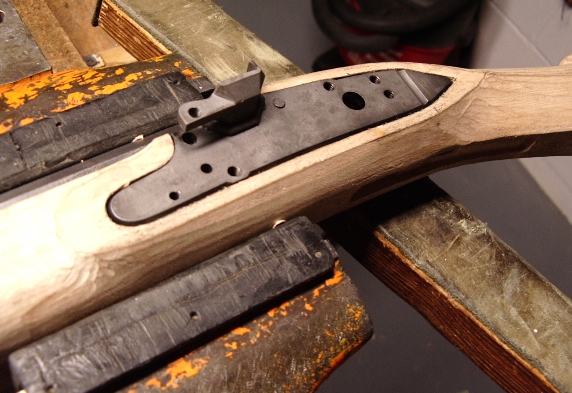

2010-03-07 020.JPG (181021 bytes) Using candle soot, I then then inlet the lock p2010-03-07 021.JPG (225561 bytes)late into the stock.  I will work on the internal parts next.













2010-03-07 018.JPG (226751 bytes)



The internal components of the lock were inletted one piece at a time. In the following order: Stirrup, tumbler, sear, sear spring with bolt and then the main spring.

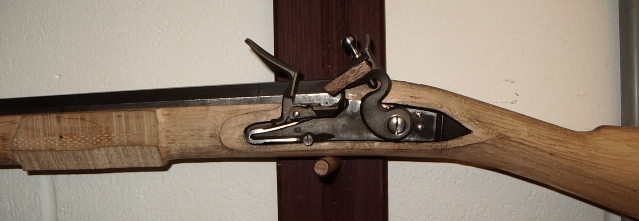

Once all the components were inletted and the lock internal components were working, I made a short movie of the lock in action.



Movie:
